MAVEN will begin first “deep” campaign on February 10th

Periapsis Path

MAVEN’s primary mission includes five 5-day “deep-dip” campaigns, in which the periapsis (lowest point in the orbit) is lowered from about 93 miles (150 km) to about 77 miles (125 km). The first “deep dip” maneuver will begin on Tuesday, February 10, 2015, with a two-day “walk down” into the target density corridor of 2.0 – 3.5 kg/km3. The density of Mars’ atmosphere in the current science-mapping orbit is about 0.12 kg/km3.

At altitude of 77 miles (125 km), Mars’ atmosphere is around 30 times more dense than it is at MAVEN’s nominal science mapping periapsis of 93 miles (150 km). To accommodate for the increase in atmospheric density, the spacecraft’s solar panels are bent at a 20° angle, which shifts the center of air pressure away from the center of gravity, providing self-stabilization.

The “deep dip” campaigns will provide data from the boundary where Mars’ upper and lower atmospheres meet—also referred to as the “homopause”—enabling the spacecraft to sample the entire upper atmosphere of Mars for the first time.

Thanks to NASA’s MAVEN Mission to Mars

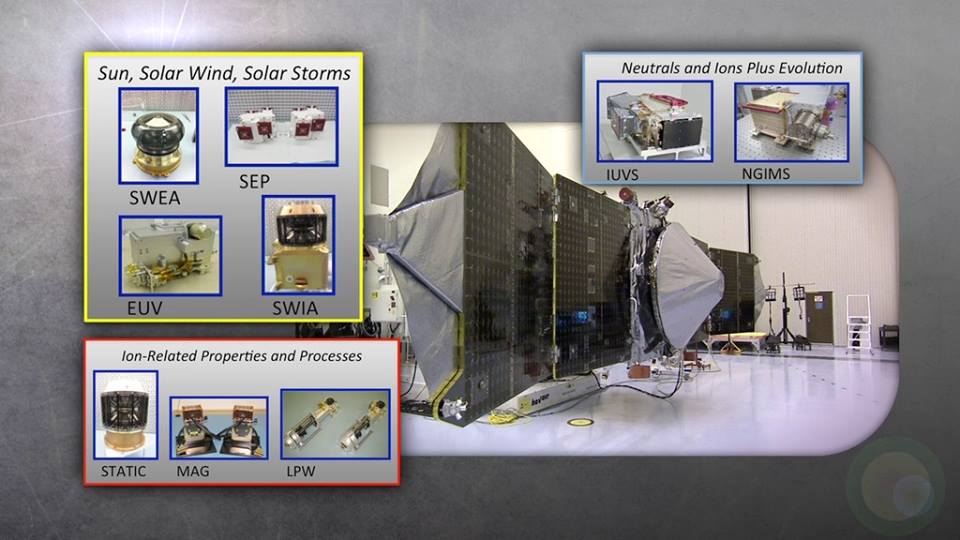

SSL Instruments

MAVEN’s Suite of Instruments to study the Atmosphere of Mars, photos courtesy of NASA’s MAVEN Mission to Mars

Mars Atmosphere

MAVEN’s path as it dips through the Atmosphere of Mars as part of the Deep Dip Campaign. Photo courtesy of NASA’s MAVEN Mission to Mars
